Importing from XR5000

Importing from XR5000


Stockbook can import details from a file that has been created from a data collector e.g. the Tru-Test XR5000 weigh scales indicator.



Step 1. Connect your XR5000 to Stockbook

Click on the following link for step-by-step instructions on how to Connect a device to Bluetooth.

Click on the following link for step-by-step instructions on how to  Connect a device to Stockbook.



Step 2. Details from Data File Menu Option

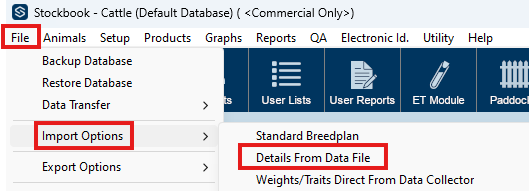

  1. Click on File.
  2. Import Options.
  3. Details From Data File menu option.

Step 3.  Import from Reader/ Scale.

Click on Import from Reader/Scale button.



Step 4.  Select Session to Import

  1. Select the session you wish to import from the Sessions List.
  2. Click the Refresh button to show Data in selected session.



Step 5. Selected Animals will show

Once the selected animals from the session appear in the list click on Import this Data to bring the information into the import screen.

Step 6. Importing CSV Files

Follow the steps as per the following link from Part B: Importing CSV Files


Article ID 1459
