About the Gallagher TW & TWR series

The TWR series

All Gallagher TWR devices are a weigh scale and reader, meaning it has an EID reader built into the unit.
The Gallagher TWR series is a data logger. A datalogger brings in multiple strings of data e.g. EID, weights, traits etc.....
A Gallagher TWR series has the option to be set as a weigh scale only OR a weigh scale and reader combined.

The TW series

All Gallager TW devices are a weigh scale only and therefore only bring in the weight.
All Gallagher TW devices are connected as Gallagher/Ruddweigh KM3/300..800 in SB

Note, a Gallagher TW series can be set as a datalogger - i.e. when paired to another device such as a reader and then connected to SB - not recommended

It is important to identify which series and model you are connecting.
The Model can be found on front of the device below the screen.

The TWR-5




The TWR-5 can be connected as a Datalogger (scale and reader combined) or as a Ruddweigh (scale only).

Connecting a Gallagher TWR-5 as a Data Logger (reader and scale)

When connecting the Gallagher TWR-5 to Stockbook as a Datalogger it will bring in the EID and Weight (reader and scale) combined.
To connect the TWR-5 as a Datalogger follow the steps outlined below:
  1. Ensure Live Entry is closed while connecting the device.

On the Gallagher TWR-5

  1. Turn on the Gallagher TWR-5

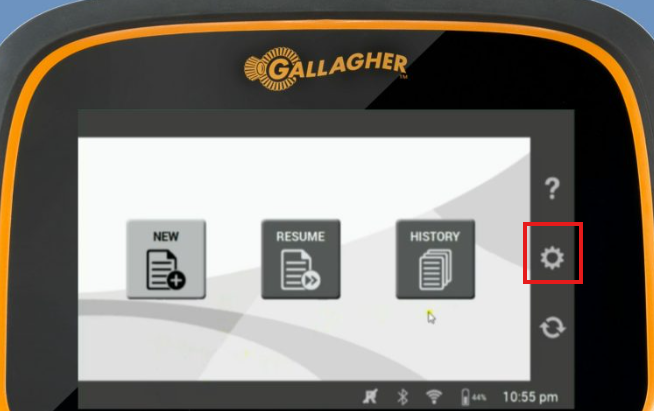

  2. Click on the settings cog at the right of the screen


  1. Click on Device Settings > Bluetooth

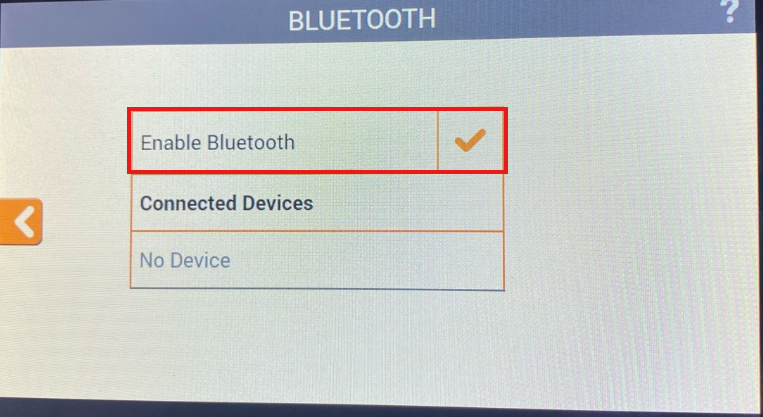

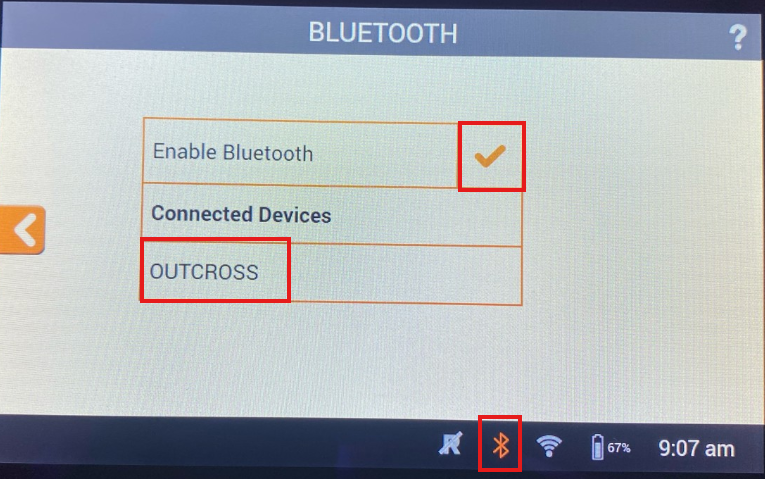

  1. At this point -
    1. Enable BT should be ticked
    2. Below connected devices, it should say no device

  1. Leave the TWR-5 on this screen.

   On the Computer

  1. Navigate to Bluetooth and device settings

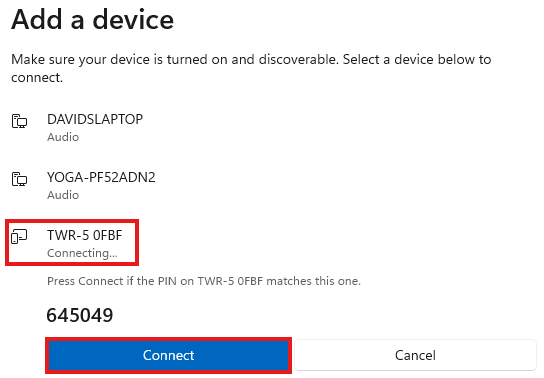

  2. Click Add Device

  1. You may need to click Show all devices to select the device

  1. Select the device, click connect and accept the pair code that appears.


  1. Click Done. The scale will now be connected to the computer.
  2. Go to More Bluetooth settings


  1. Options tab - ensure 'Allow Bluetooth devices to find this PC' is ticked.

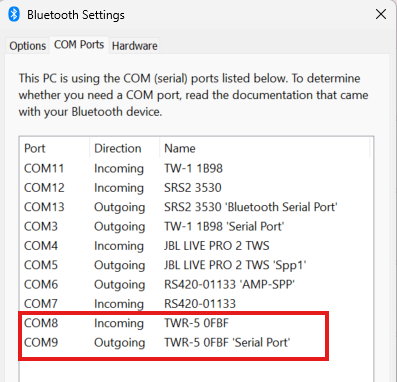

  1. Select COM Ports tab and make note of the Outgoing COM Port number

  1. Close both Bluetooth windows

 In Stockbook

 To connect the TWR-5 as a Datalogger

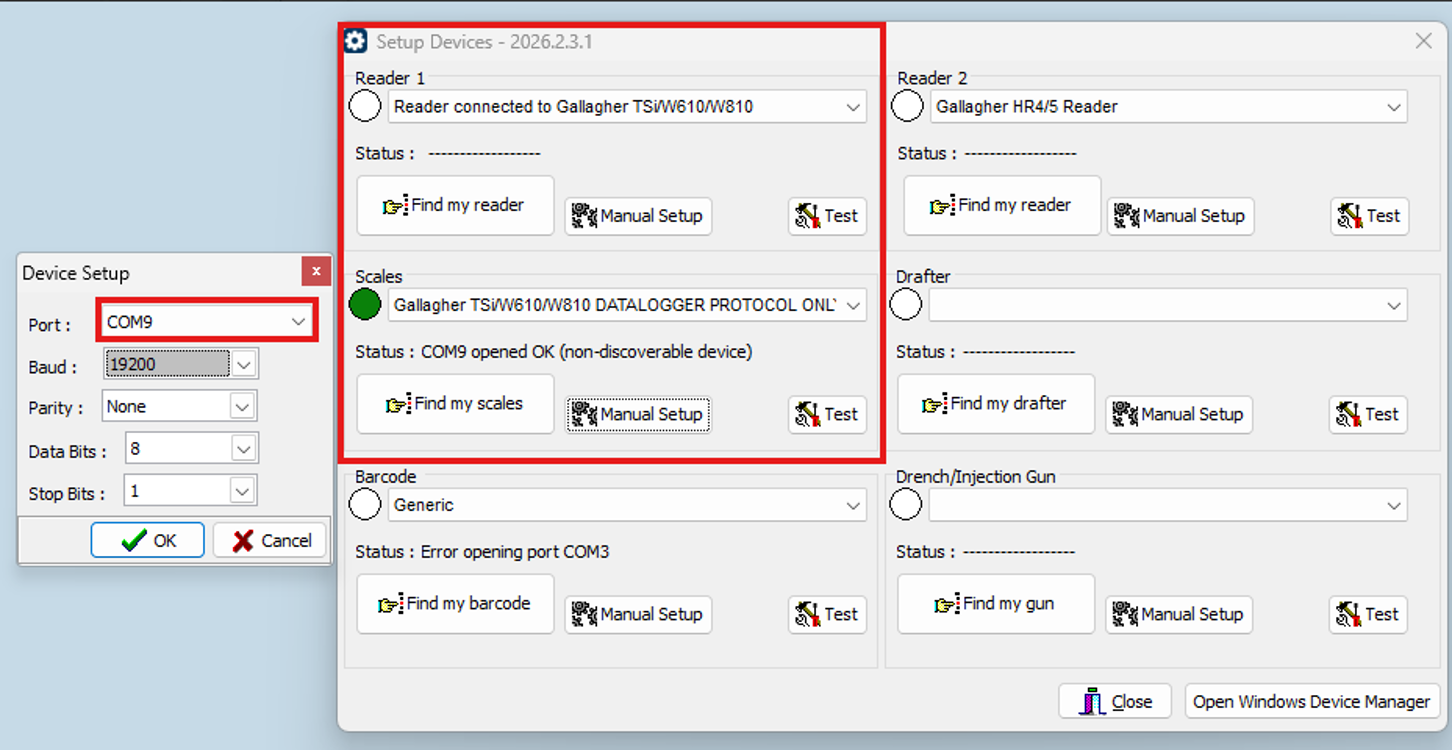

  1. Go to the Electronic Id. Tab > click Setup

  1. From the 'Reader' dropdown select Reader connected to Gallagher TSI/W610/W810 (Note: COM Port is NOT required)

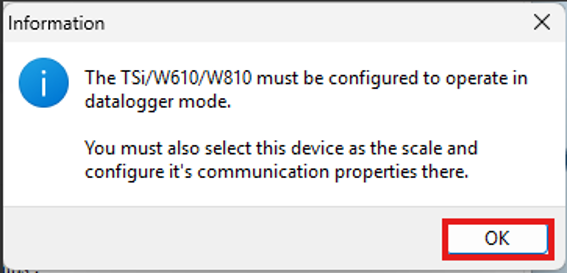

  2. Click OK to the following message


  1. From the scales dropdown select Gallagher TSI/W610/W810 Datalogger protocol only (Note: COM Port IS required. Do not be concerned if it is a red light on connection)
  2. Select Manual Setup in the scales section
  3. Select the COM Port number that was noted during the Bluetooth connection process


  1. The device will now be connected

In Live Entry

  1. Go to the Live Entry home page - Do not select a template at this stage. This is vital for the TWR-5 to respond.


Back to the TWR-5 datalogger settings

 The computer name should now appear on the TWR-5 and the BT icon on the taskbar should go from grey to orange.

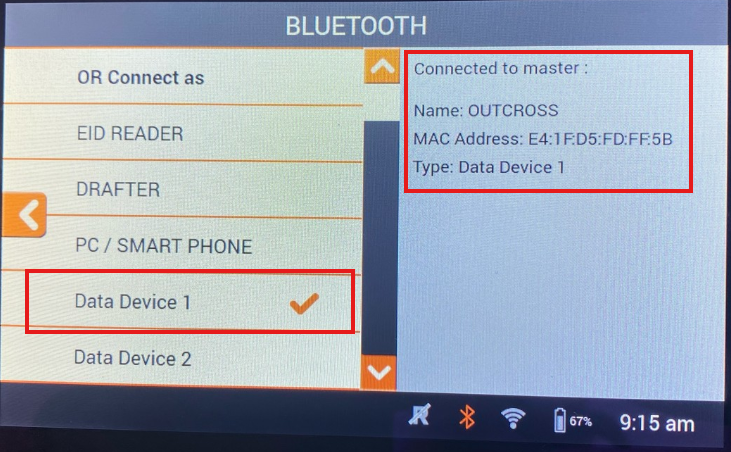

  1. Click on the computer name
  2. It will say, connected to master on the top right side of the screen
  3. On the left, either Data Device 1 or Data Device 2 will be ticked

  1. Click back arrow 3 times to get back to Settings and click Equipment Connections
  1. Select data device 1 to check settings
    1. Click Settings
    2. Click Type
    3. Change Type to Data Logger
    4. Select the options to be recorded - Output data
      1. Send on EID recorded, Send on Weight Lock & Send on animal release (Screen shot needed here)

NOTE:  if weighing and recording EID  you will need to set the option as - Send on weight lock ( i.e once the weight locks it will send both the EID and weight)
if there are no load bars i.e. not weighing  you will need to set the option as - send on EID recorded.

           You will now need to set send options as per the following:-

      Click Save. Note if changes are made the option to Save will be orange. If no changes made the save option will remain grey.

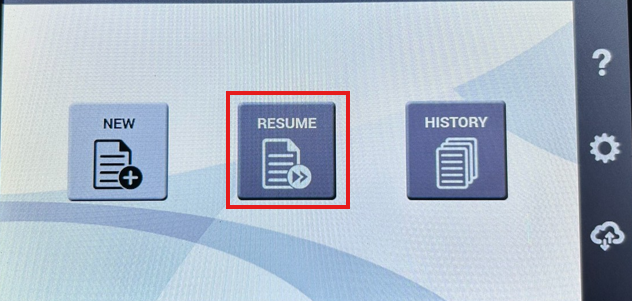

  1. Back arrow 4 times the main screen and click on Resume


Back to Live Entry

  1. Close Live Entry down - the orange BT icon should go grey
  2. Open Live Entry again and the BT light should go orange ( you have a connection)
  3. Select template
  4.  Select the template in Live Entry
    1. If recording weights you should now see the weight on the scale.
You should now be ready to start Live Entry!

Troubleshooting and tips

  1. To shut the TWR-5 down, go to device settings, local settings and shut down
  2. The device may need a software upgrade. To upgrade Software, go to Settings, Software Upgrade.
  3. At no point should the screen say PC smartphone.
  4. Ensure the load bars have been connected
  5. Gallagher W0 will not connect via BT. They are the most basic scale. The bluetooth connection is a slow speed, enough to connect to APS to send the session data, but not enough to connect to any third party hardware. It will only connect to a phone.
Please note this article is intended as a guide only. Future device updates may alter the way the device is connected. If you encounter any difficulties with connecting your device please do not hesitate to contact Outcross Systems support.
