Gallagher TW-1

Gallagher TW-1

About the Gallagher TW & TWR series

The TWR series

All Gallagher TWR devices are a weigh scale and reader, meaning it has an EID reader built into the unit.

The Gallagher TWR series is a data logger. A data logger brings in multiple strings of data e.g. EID, weights, traits etc.....

A Gallagher TWR series has the option to be set as a weigh scale only OR a weigh scale and reader.

The TW series

All Gallager TW devices are a weigh scale only and therefore only bring in the weight.

All Gallagher TW devices are connected as Gallagher/Ruddweigh KM3/300..800 in Stockbook



Note, a Gallagher TW series can be set as a data logger - i.e. when paired to another device such as a reader and then connected to Stockbook - not recommended



It is important to identify which series and model you are connecting.

The Model can be found on front of the device below the screen.



The TW-1

When connecting the Gallagher TW-1 to Stockbook, follow the steps outlined below:

Please ensure Live Entry is closed while connecting the device.

On the Gallagher TW-1

  • Turn on the Gallagher TW -1

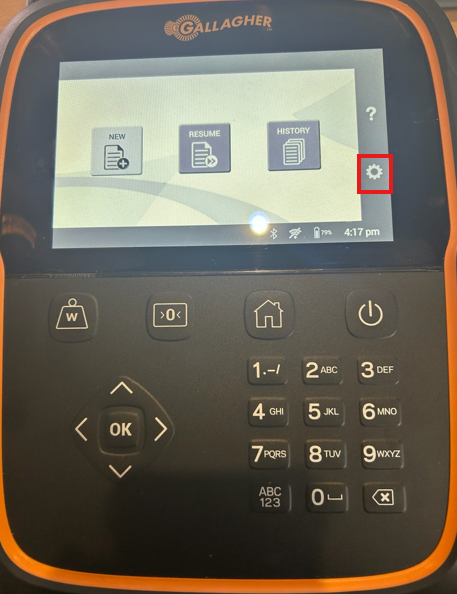

  • Click on the cog to the right of the screen

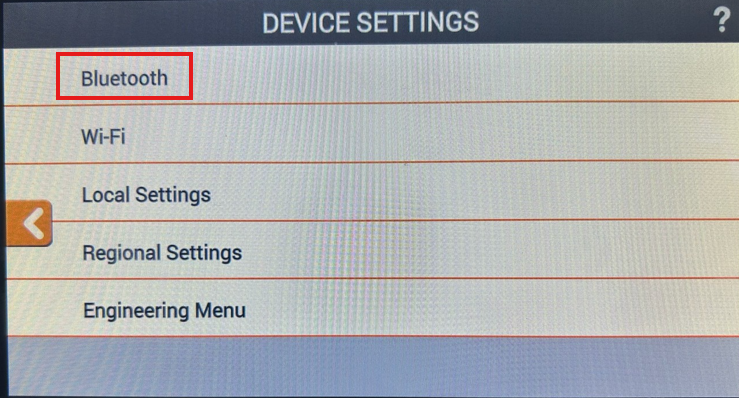

  • Go to Settings > Device settings > Bluetooth > Enable Bluetooth
  • At this point -
    • Enable BT should be ticked
    • below Connected devices it should say no device
  • Leave the TW-1 on this page.







On the computer

  • On the computer navigate to Bluetooth & devices
  • Select add device. Note, the pair code will be 0000 or accept the pair code that appears.
  • Select connect. The scale will now be connected to the computer.
  • Make note of the Outgoing Com Port number

  • Close Bluetooth & Devices

In Stockbook

  • Go to the Electronic Id. tab > Setup
  • In Scales - select Gallagher/Ruddweigh km3/300..800

  • Go to Manual setup

  • Select the correct COM port number noted earlier

  • Select OK

  • Close the setup screen

In Live Entry

  • Go to LE home page - Do not select a template at this stage. This is Vital for the TW-1 to respond

Now back to the TW-1 - settings

  • The computer name should now appear on the TW-1 and the BT icon on the taskbar of the TW-1 should go from grey to orange.

  • Click the computer name on the TW-1

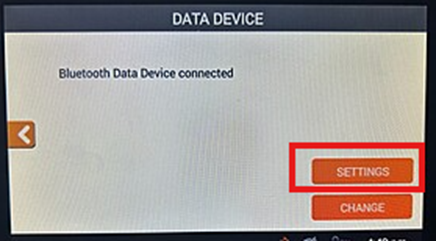

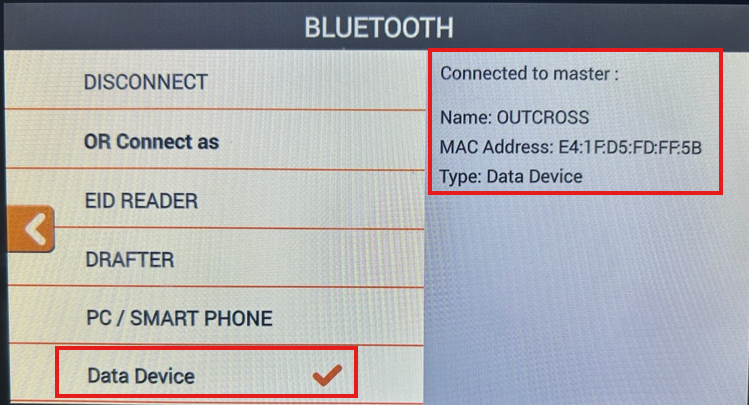

  • Tick Data Device. You should see on the top right that it is 'connected to master'.

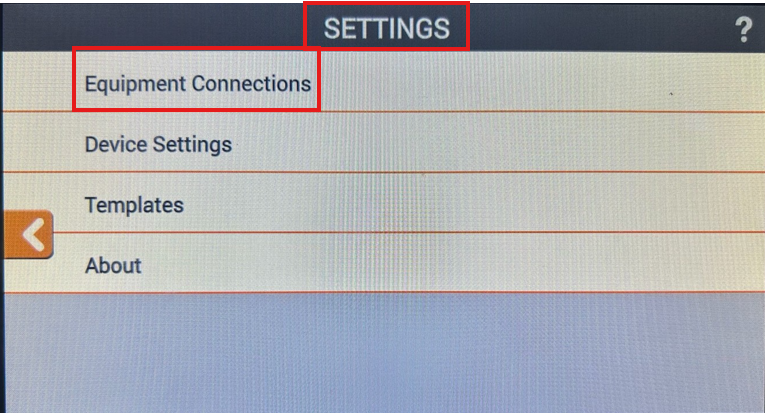

  • Now click the back arrow (approx. 3 times) to Settings and select equipment connections





  • In data device, the computer name should be displayed with (Ruddweigh) after the computer name
  • Click on Data device - computer name (in this example 'OUTCROSS (Ruddweigh)')

  • Click Settings



  • There will now be 3 dialogue boxes - Name, Type & View Options



    • Name - Should now reflect the computer name

    • Type - Should say Ruddweigh if it doesn't say Ruddweigh click Type to change Ruddweigh

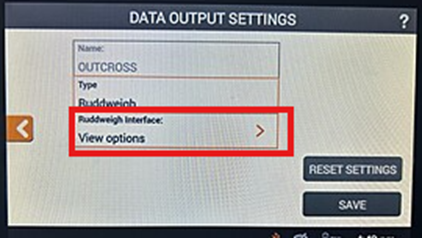

    • Click View Options - this is where we tick everything except the bottom 2 options









  • Click Done

  • Arrow back till you see the 3 boxes New, resume & History - select New (for new session) or Resume (to resume an existing session). You will now see the weight displayed on the screen of the TW-1



  • Select a Live Entry template - The scale may or may not reflect as connected at this point. As long as the Orange light is on the TW-1 then it is safe to assume the device is connected.

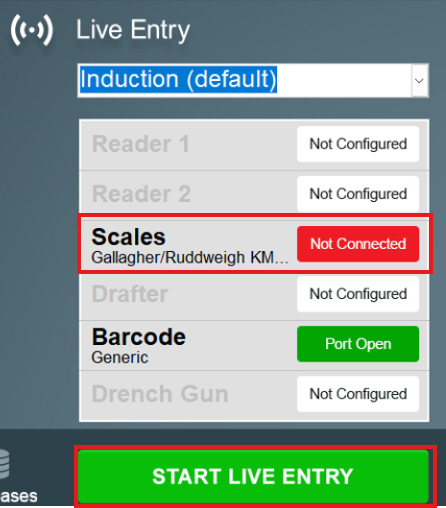

  • Click start Live Entry

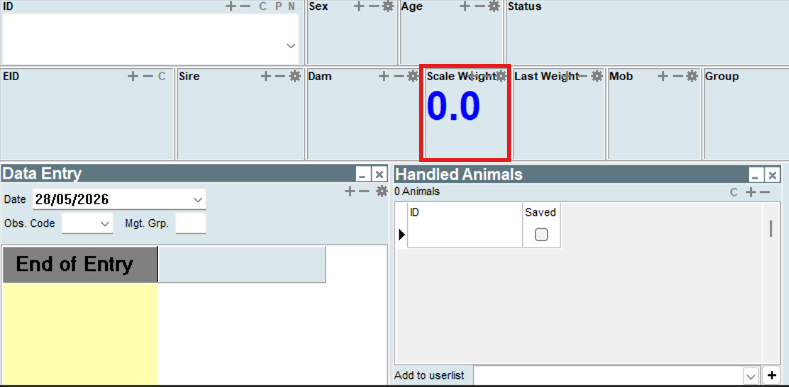

  • The weight on the top of the Live Entry screen in the scale weight box should replicate the weight on the TW-1 screen. Normally it is 0.0



  • Apply a weight to the scales and the zeros will change according to the weight applied.

You are now ready to start the Live Entry session!



Hints:

  • To completely shut down the TW-1 go to Setting > device settings > local settings > select shut down
