Connecting Te Pari drench gun (STAND ALONE)

Connecting Te Pari drench gun (STAND ALONE)

Te Pari Gun Setup:


Turn on the gun by pressing the power button (red square in picture)

1. Press menu (green square in picture) x3

2. Pause and press menu again > Use the arrows to select the tick > press menu

3. WiFi Mode: Te Pari app > press menu

4. DG SSID: Te Pari

5. WiFi security: Select X > press menu

6. Wait for 'sond option' display to disappear

Connect the drench gun to your device's wifi:

1. On your device > open Network and Internet
2. Show available networks

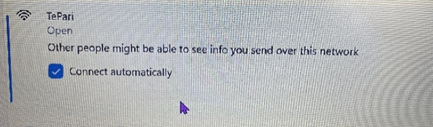

3. Select Te Pari (tick connect automatically)



Open Stockbook

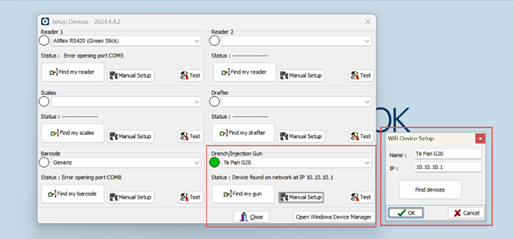

1. Select Electronic Id > Setup > From the drop-down menu under Drench/Injection Gun select 'Te Pari G20'
2. Manual Setup > IP: 10.10.10.1 > Ok


Note:
The circle next to 'Drench/Injection Gun' in Stockbook should now be green
The WiFi symbol on the Te Pari drench gun will now be lines (these will disappear when you exit out of this window - this is normal!)




Product Setup
1. Select product > Setup > Add or edit product to ensure application rate is set
      (Applied at the rate of ____ per ____kg)
2. Add treatment/product to your Data Entry template. Ensure batch no. recorded.

Start Live Entry
Ensure the Data Entry template is setup correctly with treatment and batch number.
Dosage will automatically load on the gun's screen (plus fill the SB display window) when a weight locks on the scale.
The WiFi symbol on the Te Pari drench gun will now be a solid symbol.
