AutoMed - How to Update the Firmware

AutoMed - How to Update the Firmware

Method:

Step 1

Download the DfuseDemo application on your Windows based PC and open the application. (click here)

Step 2

Download the automed Firmware onto your PC. (click here)

Step 3

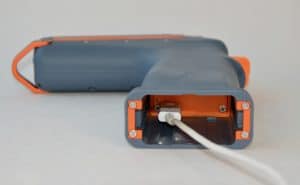

Connect the USB to automed USB connecter. (tip: do not have the USB connected to your PC for this step)

Step 4

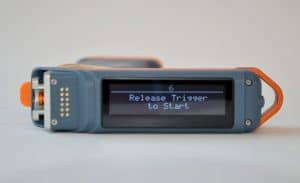

Press and hold the automed applicator trigger while plugging in the USB cable to the PC.  Keep the trigger pulled until the countdown is complete.

Step 5

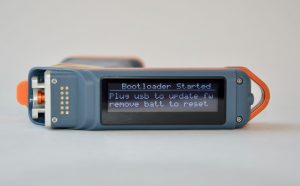

The device will now display the bootloader screen and the trigger can be released.

Step 6

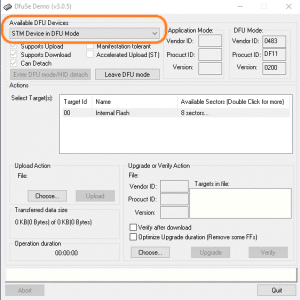

On the DfuseDemo application;  the DFU device is the automed applicator.  If the box is blank, an additional driver will need to be installed. Please contact the automed Support team for assistance if Available DFU Devices is blank support@automed.io.



Step 7

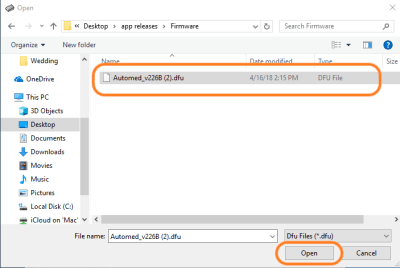

Click Choose on the DfuseDemo application and select the firmware (*.dfu) then click Open.

Step 8

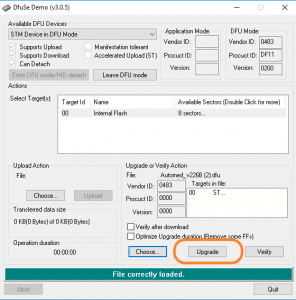

Click the Upgrade button.

Step 9

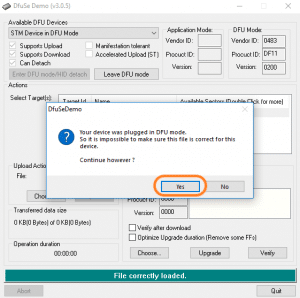

Accept the pop up message.

Step 10

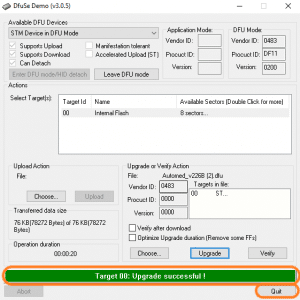

The new firmware will be loading and once the DfuseDemo application says Upgrade successful! You can then click Quit.

Step 11

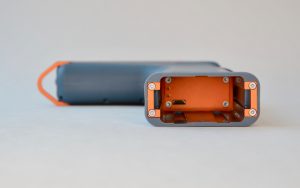

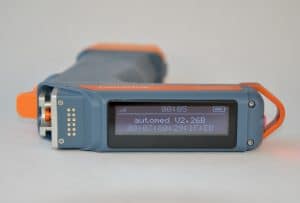

Connect the battery to the device and ensure it powers up correctly and displays the new firmware version.



Article ID 4272
